SPECIFICATIONS

Application: electric bike,Scooter,Electric Bicycle,Wheelchair,Wheelbarrow,mower,mobility scooter

Battery: -

Bicycle Gear Shifter Type: -

Braking System: -

Brand Name: -

Certification: CE

Commutation: Brushed

Connector: -

Controls: -

Design: Brushed

Display Type: -

Engine Type: -

Frame Material: -

Installation Position: -

Keywords: Long Life Low Noise

MOQ: 1 Pcs motor

Material: Metal Steel

Model Number: MY1016 with controller

Motor Power: 250 W,350 W

Motor type: Brushed Motor

Open Size: -

Packaging: -

Place of Origin: Henan, China

Position: -

Power: 250w/350w

Product Name: Micro Brush DC Motor MY1016

Protective Feature: Waterproof

Rated Power: 250 W,350 W

Special Feature: Waterproof

Style: Brushed

Suspension Type: -

Throttle: -

Typical Applications: Wheel Chair motor

Voltage: 12v 24v 36v,12V/24V/36V

Waterproof: -

Weight: 3kg

Wheel Material: -

Wheel Size: -

250W 350W 12V 24V 36V MY1016 DC Brushed Motor with Controller for Electric Mopeds

Product Dimension

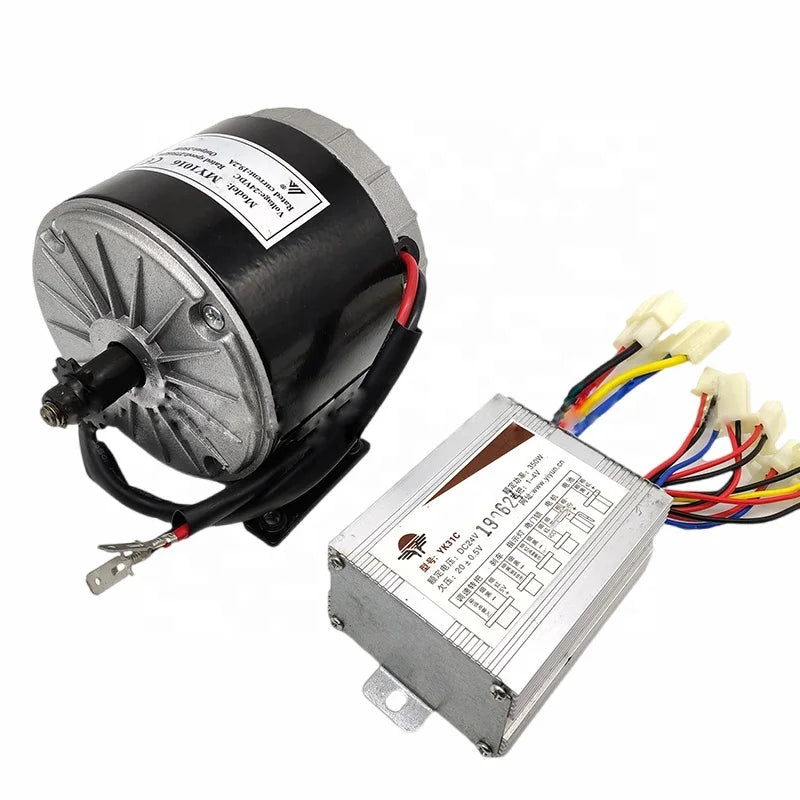

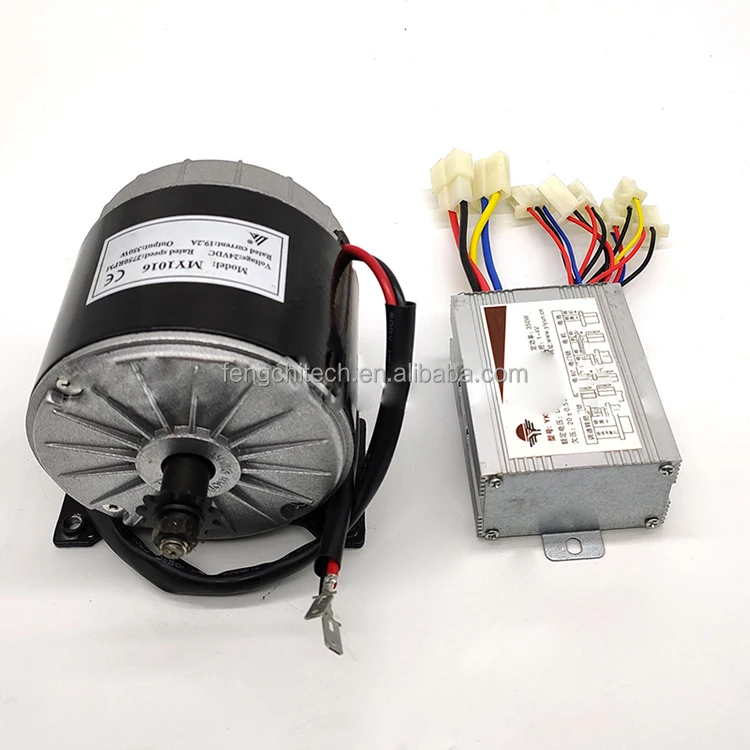

Here is MY1016 DC Motor and Controller.

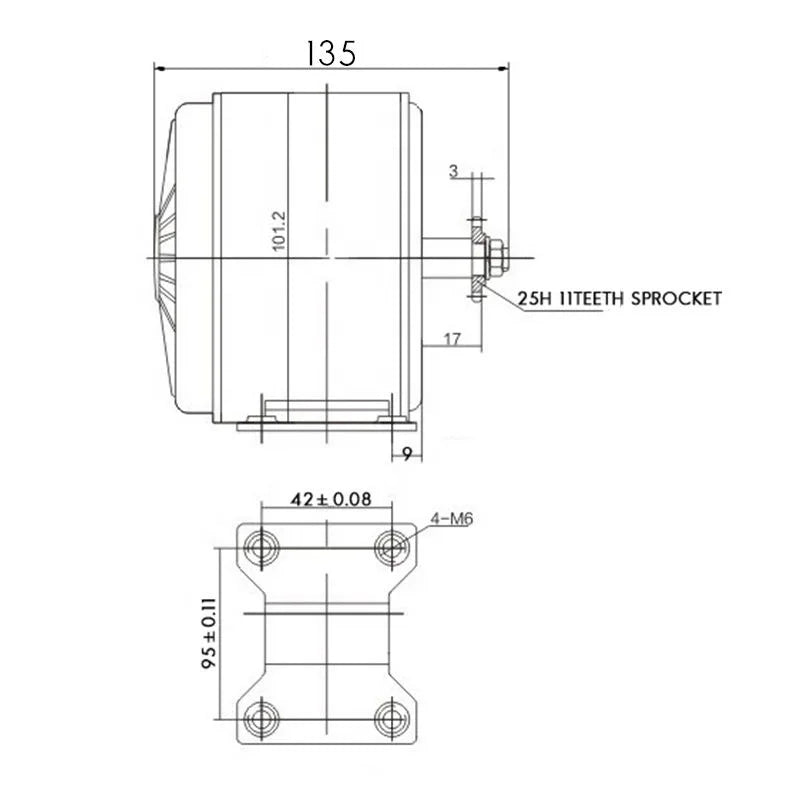

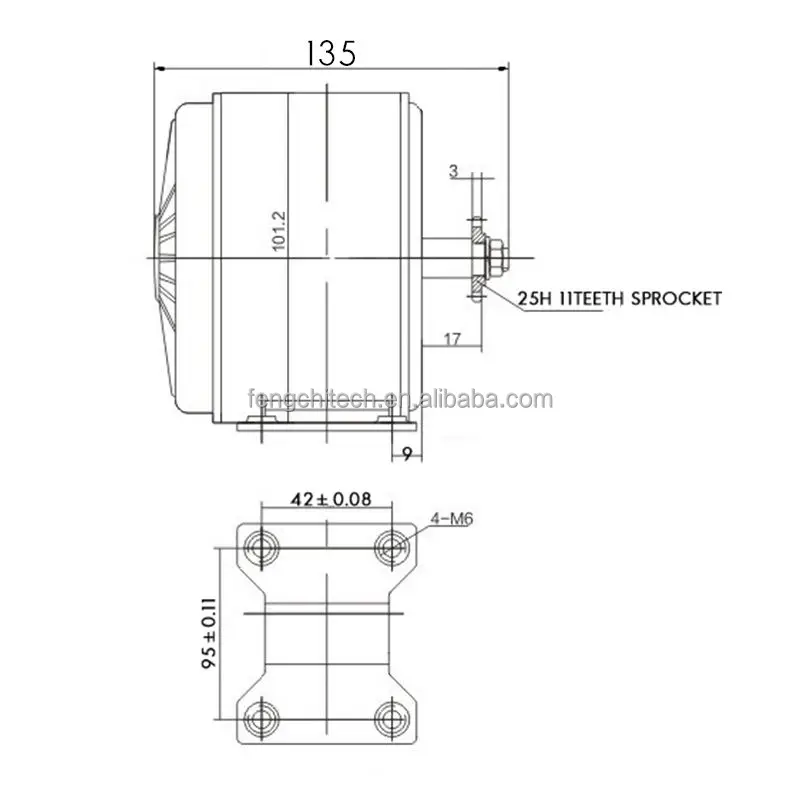

This is the drawing of the MY1016 motor.

Specification

This is the parameter table of the MY1016 motor.

series	ZD101A1
specification	ZD101A1-350W 24V	ZD101A1-350W 36V
Rated power/W	350	350
Rated voltage/V	24V	36V
No load current/A	≤2.0	≤1.5
No load speed/RPM	3100	3100
Ratedtorque/N.m	1.28	1.28
Rated speed/RPM	2600	2600
Rated current/A	≤19.4	≤12.9
Rated efficiency/%	≥75	≥75
Workingtime/min	S2-40	S2-40
Insulation class	E	E
Class of protection	IP44	IP44
Reduction ratio	/	/
Motor length L/mm	86.5	86.5
Application case	Recreational vehicle

Product Details

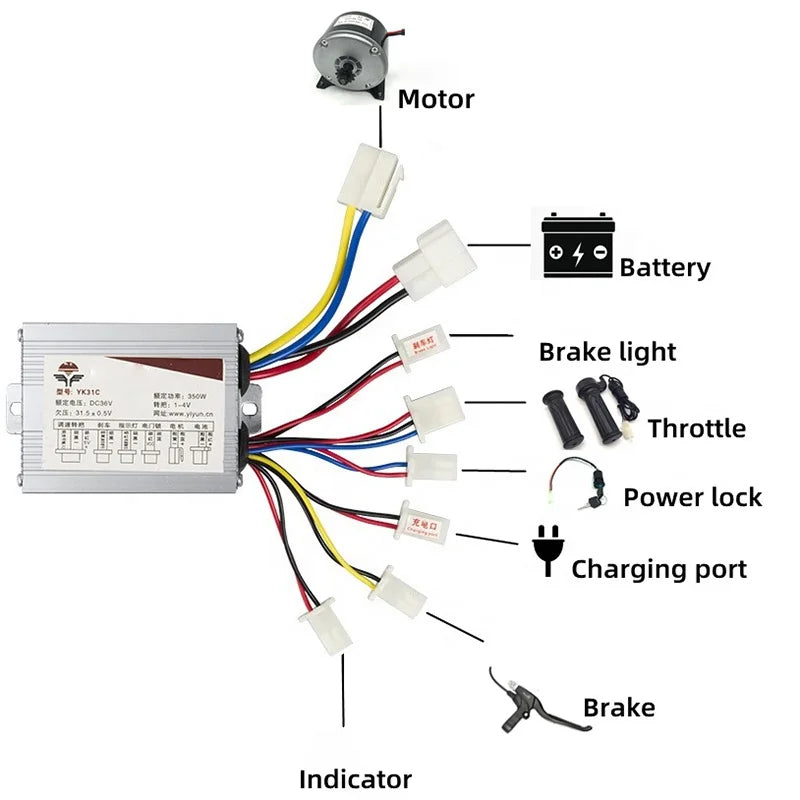

This is the instruction manual for the controller.

Recommend Products

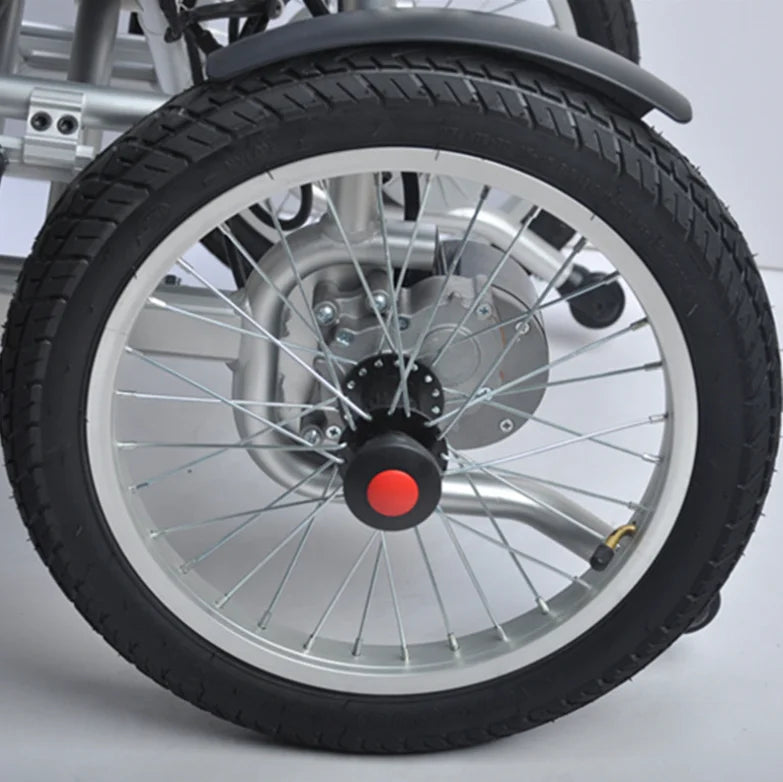

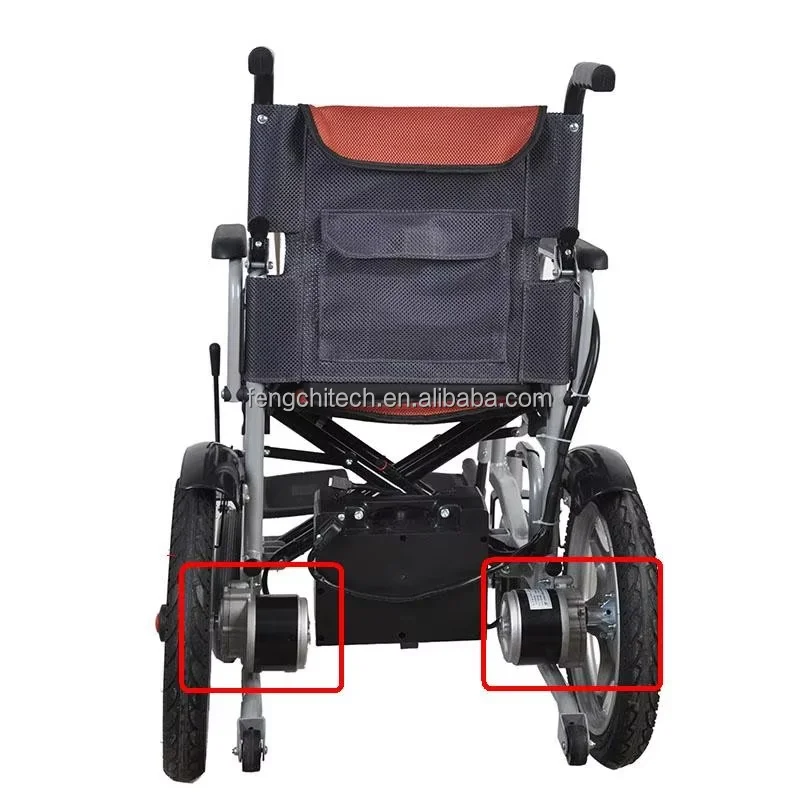

Application

This MY1016 brush DC motor has a wide range of uses, this is some of the application of the motor show:

1.Ebike
2.Vacuum cleaner

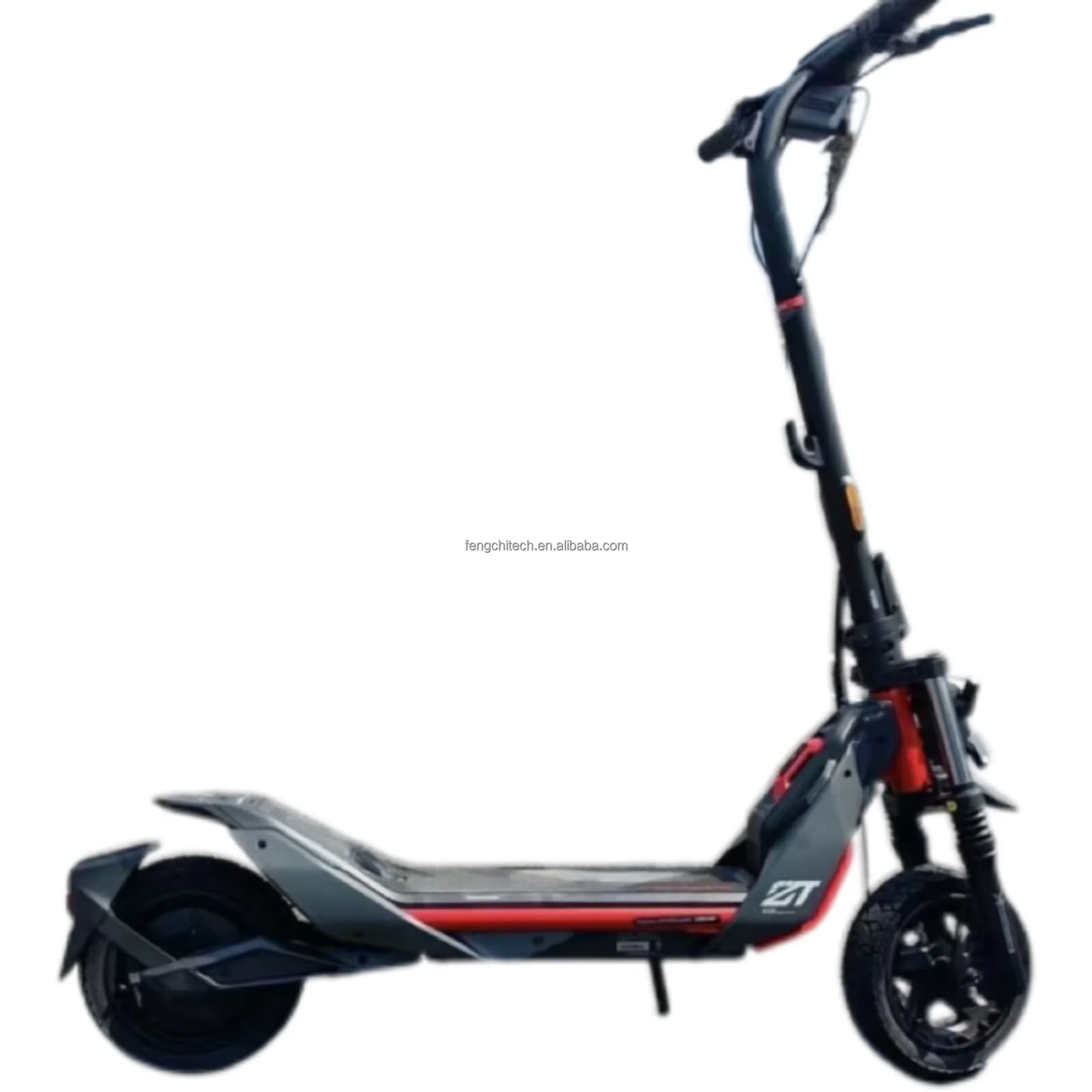

3.Electric scooter
4.Electric wheelchair
