SPECIFICATIONS

Battery: 27.5AH Lithium Battery

Battery Capacity: 27.5AH

Battery Position: Down Tube

Braking System: Oil Disc Brake

Brand Name: COSWHEEL

Charging Time: >3 hours

Color: Customized Color

Display: LCD Display

Frame Material: Aluminum Alloy

Gears: 7 Speed

Keyword: Fat Tire E-bike

Max Load: 200kg

Max Speed: 30-50Km/h

Model Number: CT20S

Motor Power: 2000W

Motor position: Rear Hub Motor

Place of Origin: Guangdong, China

Power Supply: Lithium Battery

Product name: Electic Mauntain Bike

Range: 100-200 KM

Range per Power: 100miles

Tire: 20*5.0 KENDA

Tire Width: 20*5.0

Torque: 120 Nm

Type: Electric Beach Cruiser Bicycle

Voltage: 60 V

Wheel Size: 20"

Why Choose Us

Specification

Brand	COSWHEEL
Model	CT20S

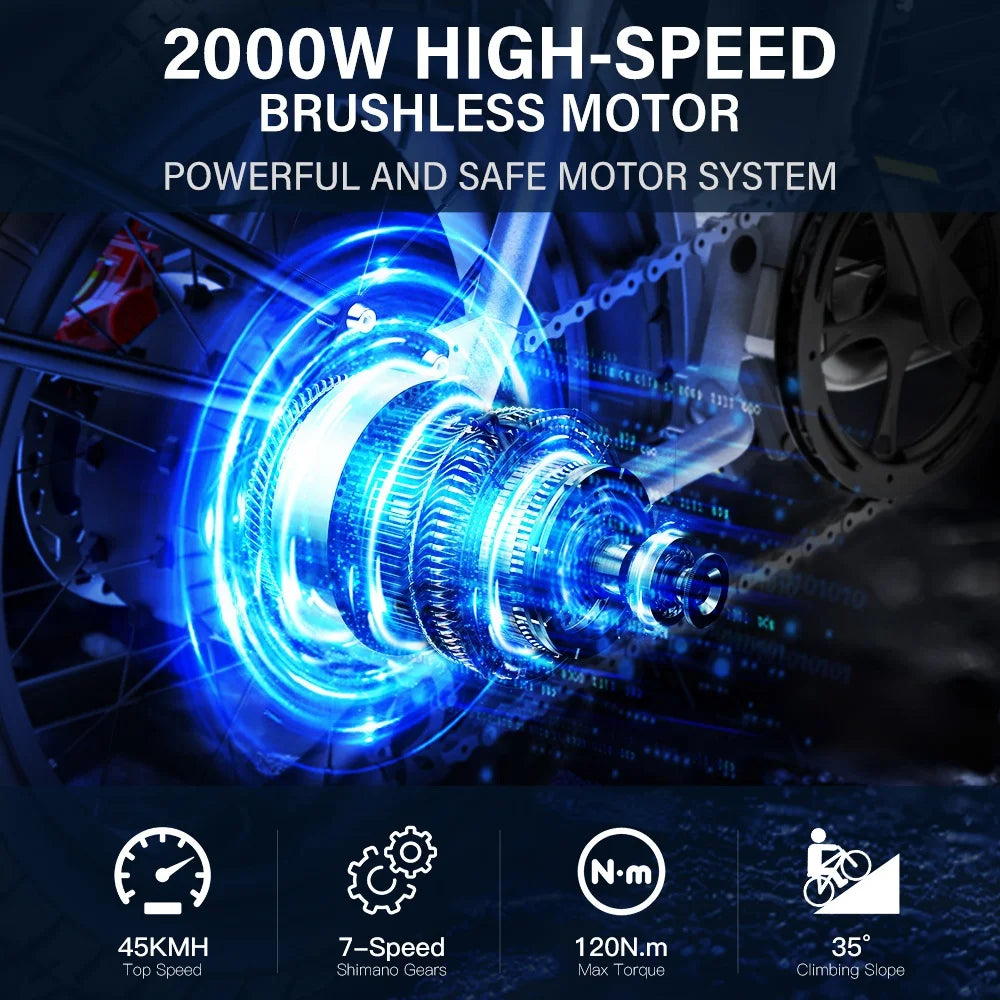

Motor	2000w rear high-speed motor Standard (1500w rated)

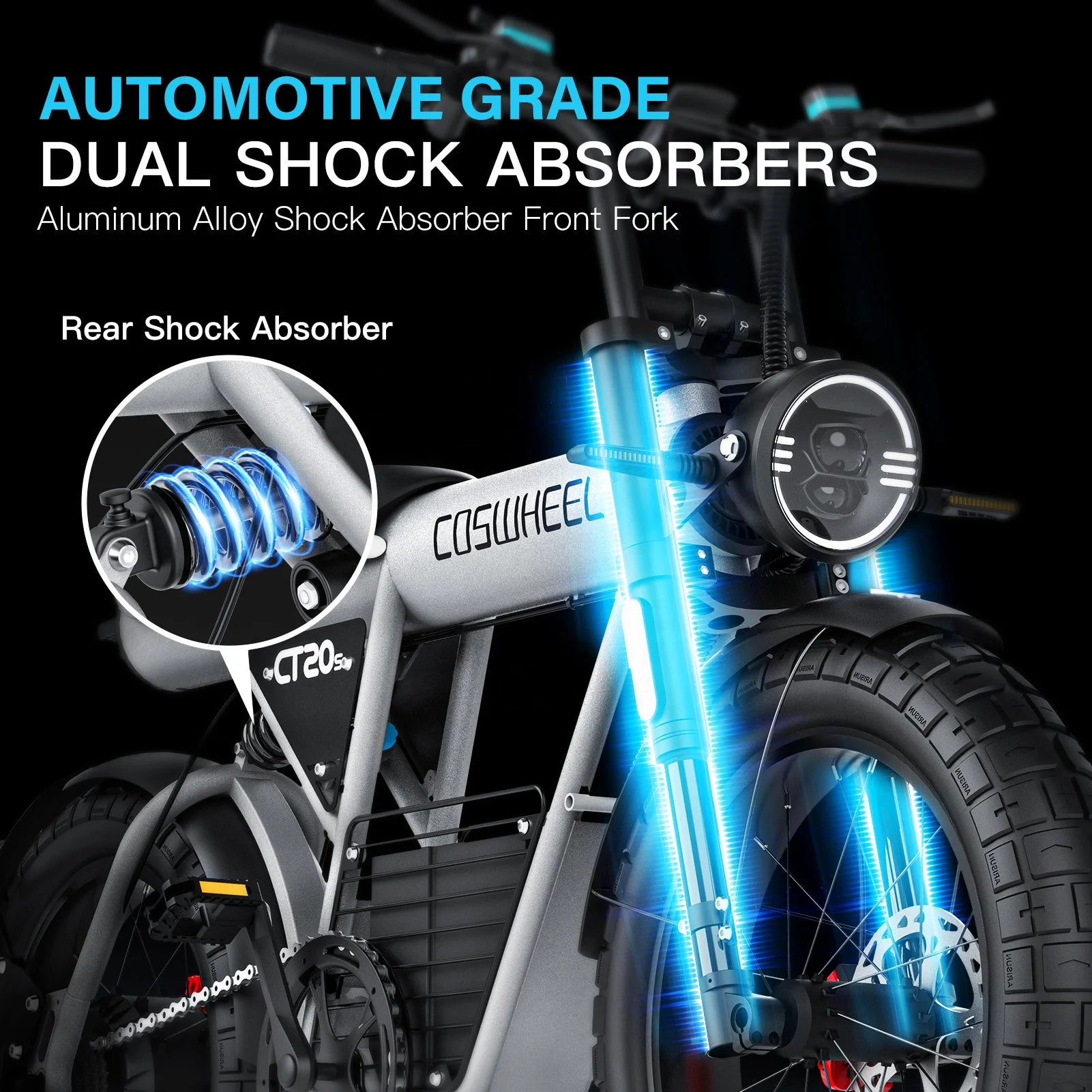

Shock	Full shock absorbers，Hole center 165mm, 850 pounds, black, 165mm Suspension Travel
Materials	Aviation aluminum alloy frame 6061
Brake system	front and rear double oil disc brake,Front brake - oil pipe length 950mm ,Rear brake - oil pipe length 1900mm
Power Booster	Double Hall

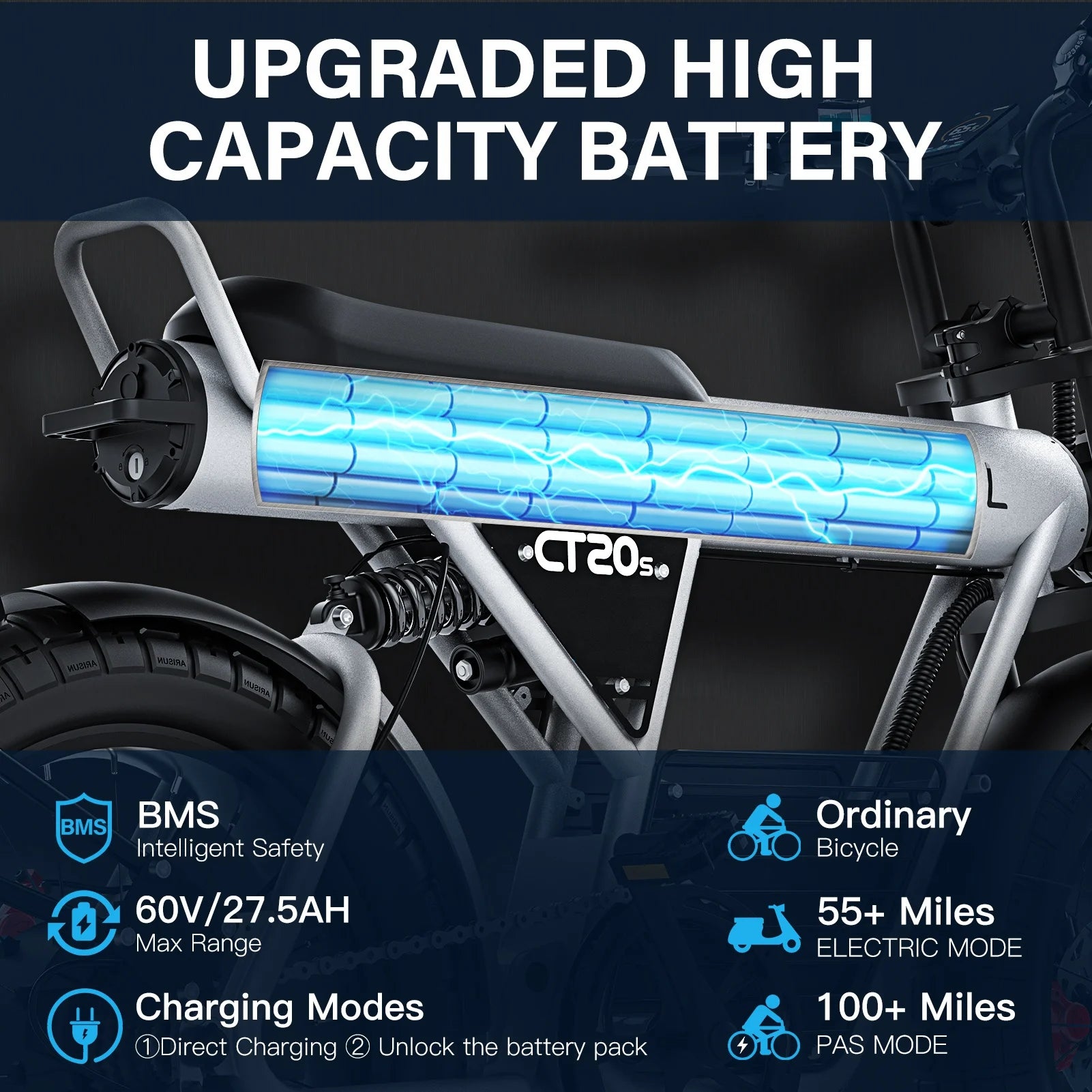

Battery	removbale battery pack equipped battery lock ,25Ah/27.5Ah/35Ah 18650 Li-ion battery optioal (1200Wh/1650Wh/1680Wh)
Torque	120NM
Climb Gradient	About 35°
Max speed	Can speed limit 25km/h and release your speed
Meter	Large 3.5-inch Color LCD Instrument Display,Cable length 1300mm, SM-5Y, 5 pole cable with USB
Turn signal	Tail light with left and right turn signal
Tire size	Black off-road Tire 20*5.0 H5176 30TPI with AV+ Liner Belt
Front fork	Anti-oxidation 20-inch double-shoulder shock-absorbing front fork
Headlights	LED Angel Eye Headlights With dual turn signals,2A four-core wire,With quick release waterproof cable
Charger	Add defense backflow function, voltage 110V-240V
Controller	Maximum load 35A current
Chain wheel crank	46T, all aluminum one-piece, sand black crank
Pedal	Plastic folding pedal with reflector, axle 9/16 X2
Curved handle	Sand black big swallow handle, φ620*31.8*H:30

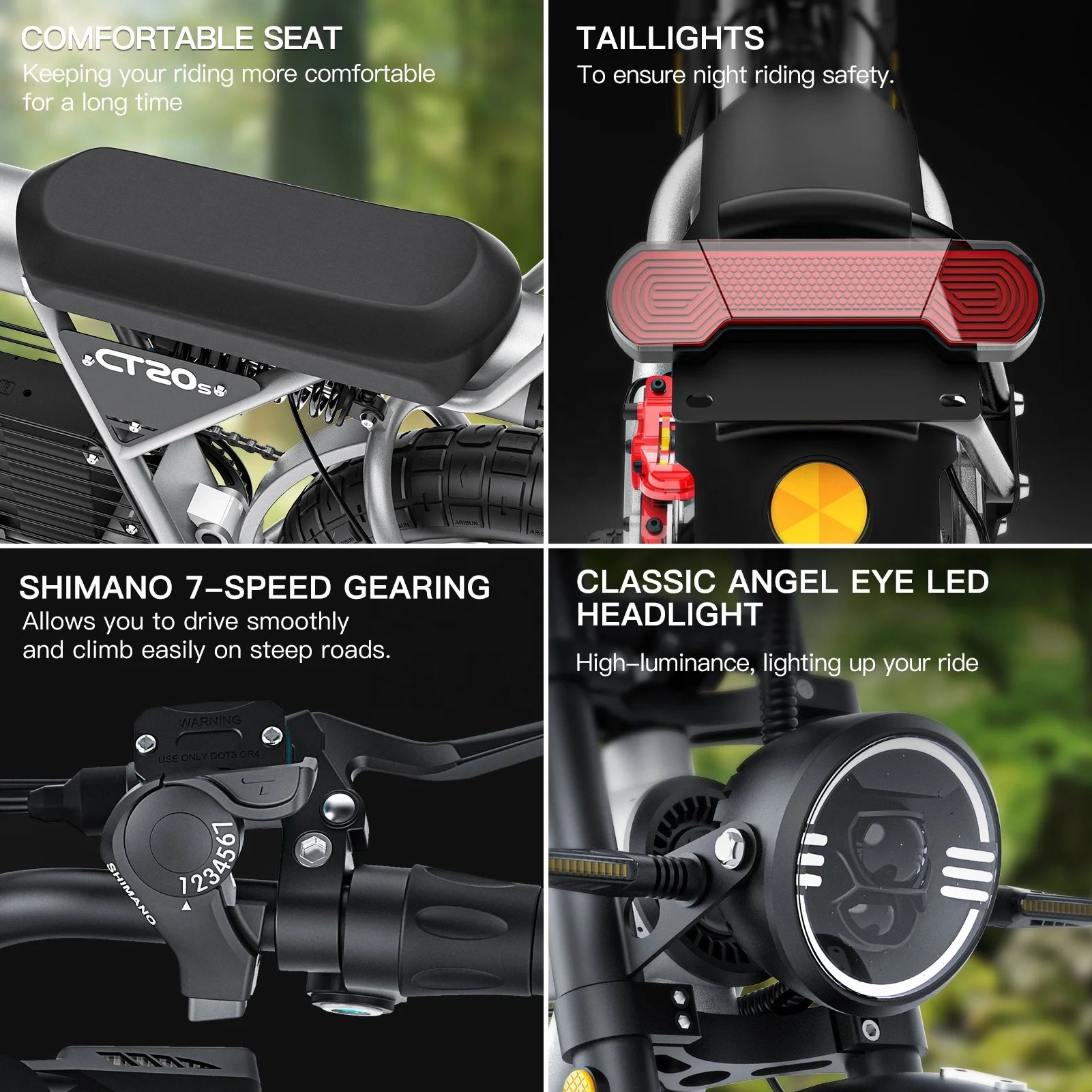

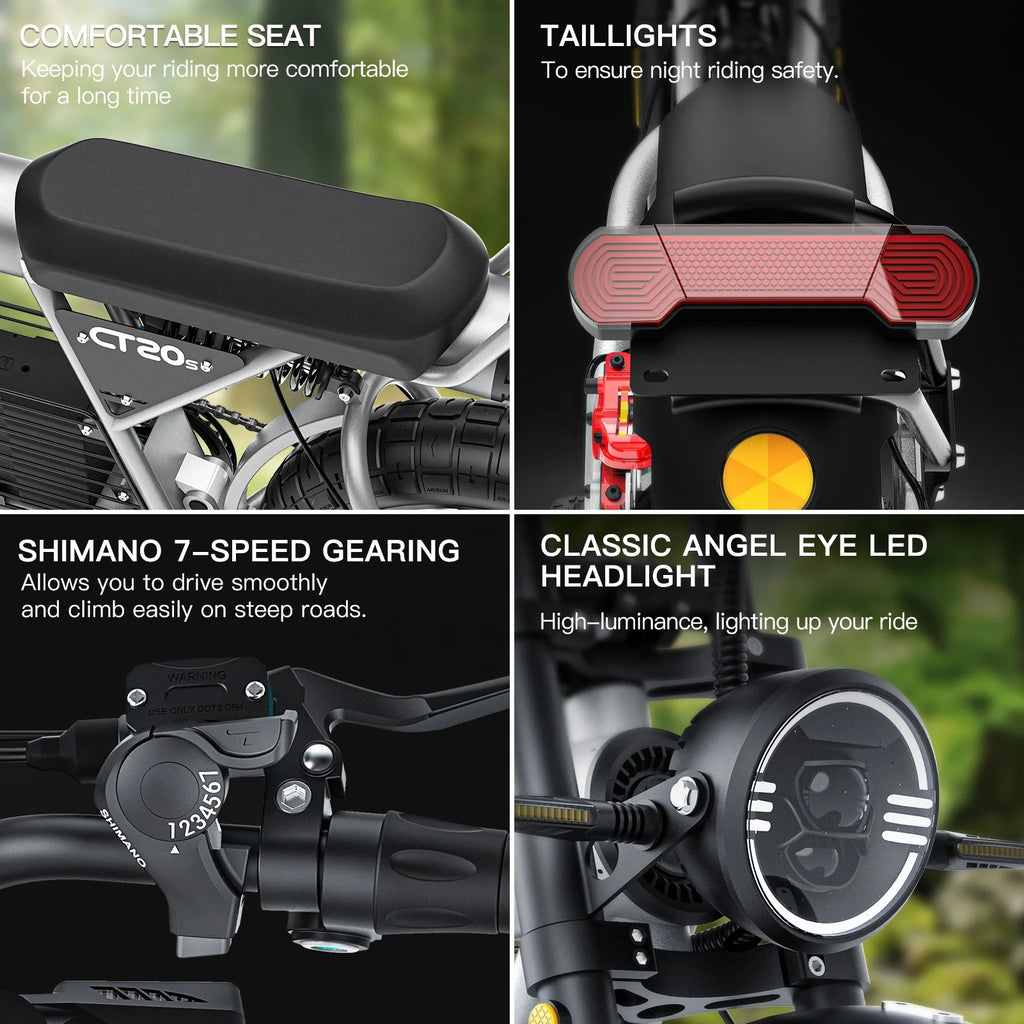

Seats	Brown 0.8T adsorption special leather
Chain	7-speed rust-proof, S33GY*128L
Gearbox	Shimano 7-speed drivetrain
Foot brace	20" mountain bike aluminum adjustable side bracket + black plastic adjustment legs + all black crystal label
fenders	Front and rear fenders are wrapped inside support, front fender with two support sticks
Max load	150kg(about 330lbs)
Mileage	80-200km

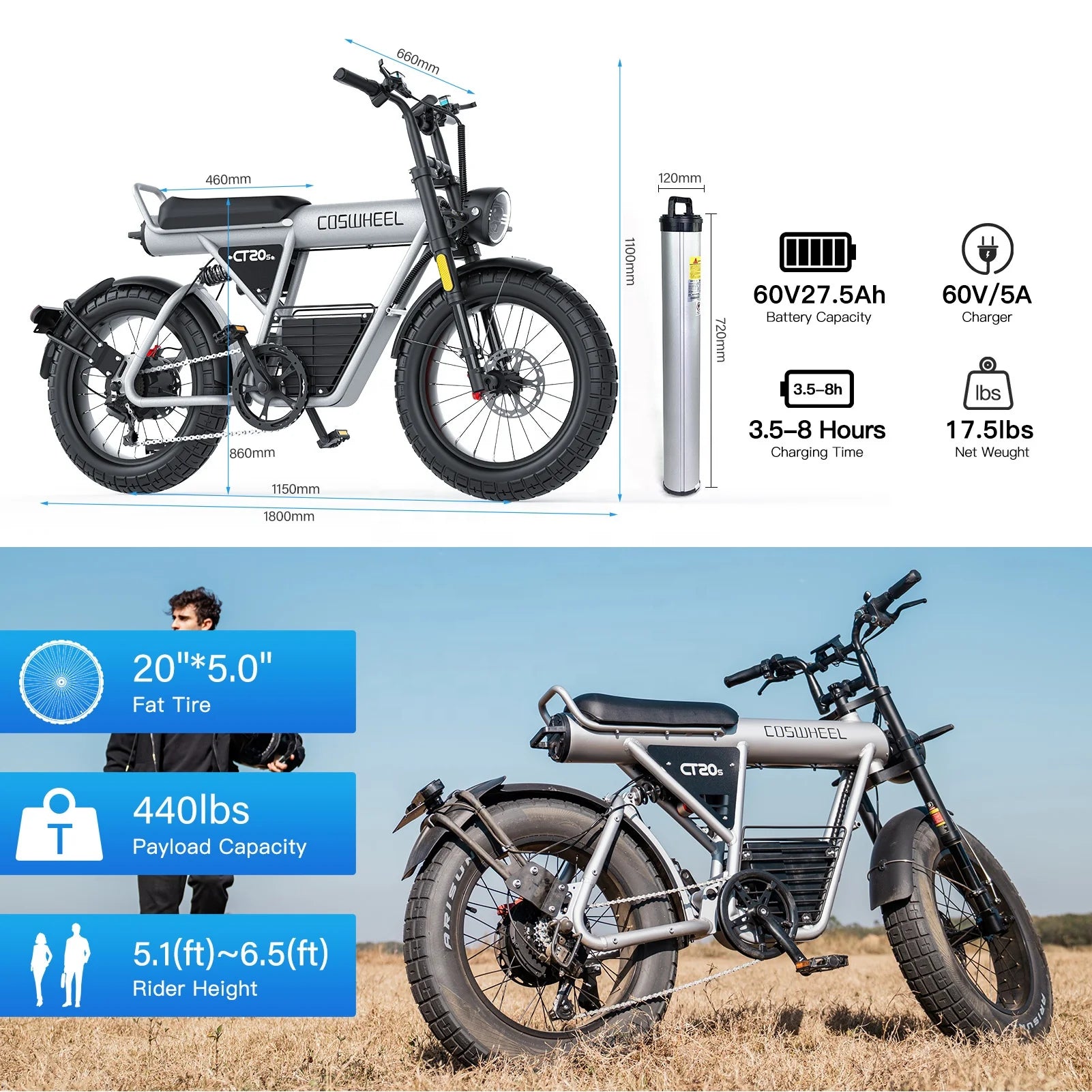

Size	Dimension 180*60*115cm，Packing Size 146*39*86cm
